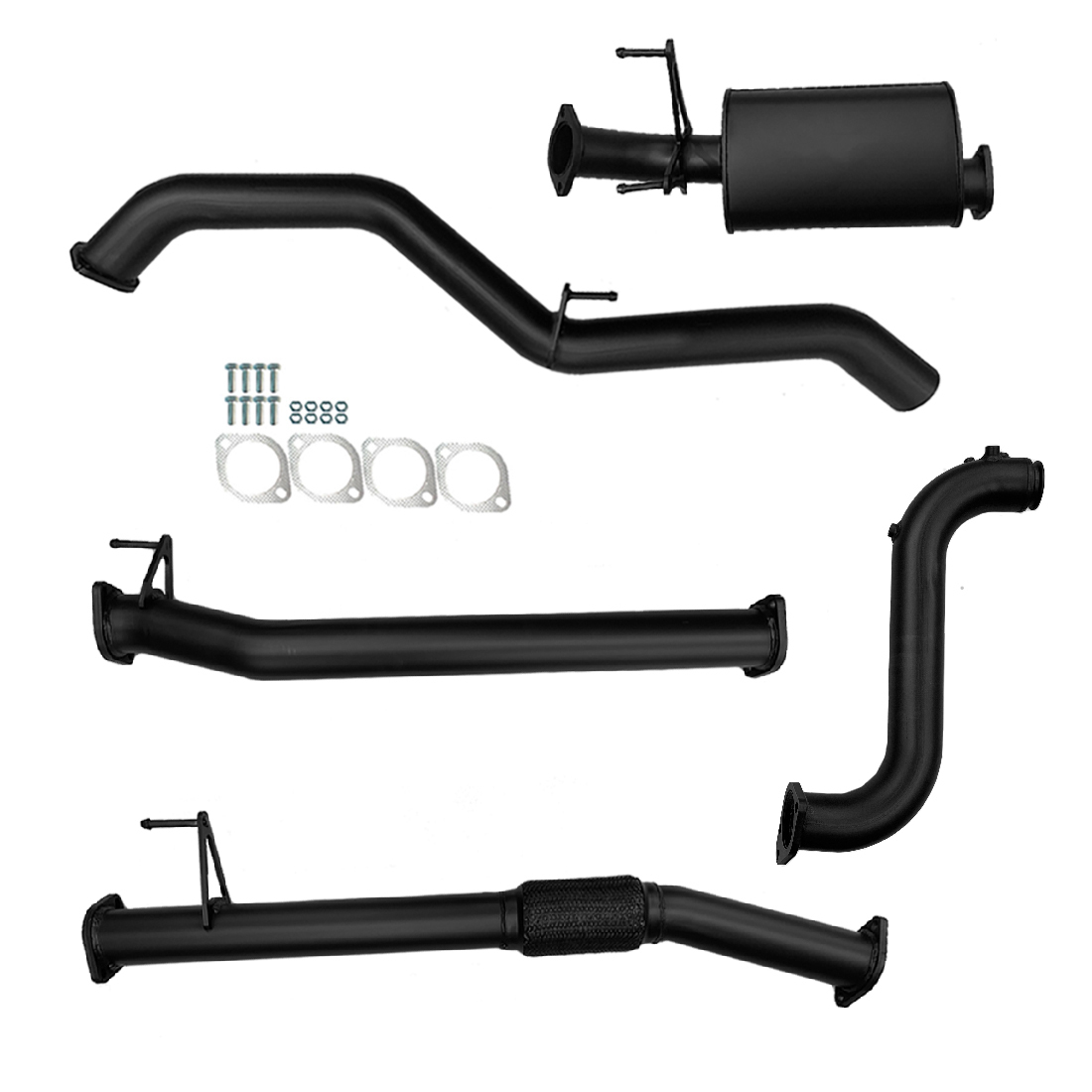

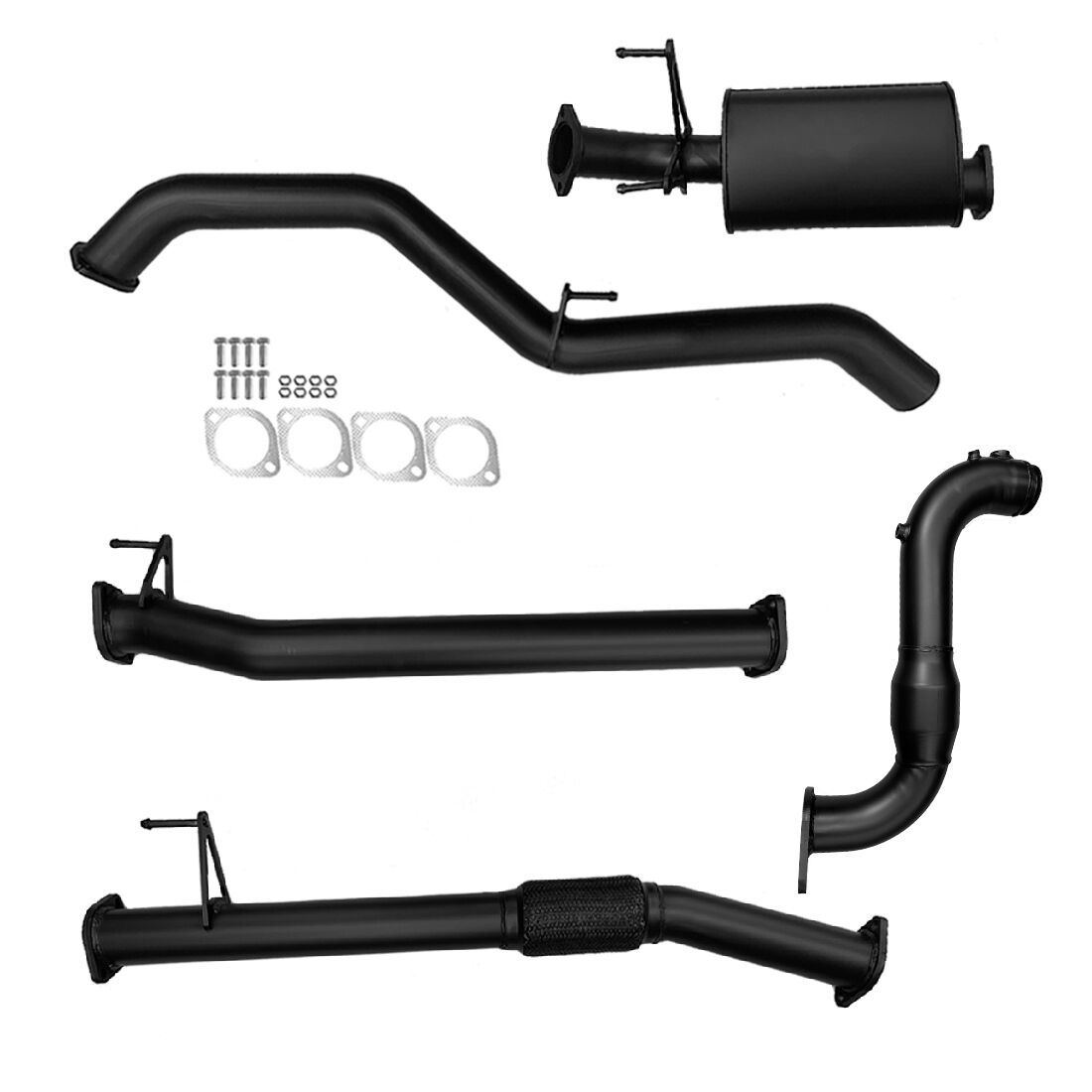

Ignite 3" & 3.5" Turbo-Back Off-Road Exhaust System - Isuzu D-Max 4JJ3 3L (MY21+)

Designed, engineered and manufactured at the Ignite facility in Sunbury, Victoria. This is the off-road / racing turbo-back system for the Isuzu 4JJ3-TCX 3L 4-cylinder diesel in the D-Max MY21+ - a full DPF-delete design optimised for maximum flow and minimum back pressure from the turbo rearward.

How It's Made

  • Pipework: CNC mandrel-bent 3" (76mm) and 3.5" (89mm) tubing for consistent internal diameter through every bend
  • Flanges: 10mm thick laser-cut plates for sealing surface flatness and long-term durability
  • Installation kit: Included with the system
  • Origin: Made in Australia

Specifications

  • System type: Turbo-back, off-road (DPF-delete)
  • Pipe configuration: 3" (76mm) and 3.5" (89mm)
  • Pipe construction: CNC mandrel-bent
  • Flange plates: 10mm laser-cut
  • Installation kit: Included
  • Country of manufacture: Australia (Sunbury, VIC)

Material Options

  • Aluminised steel - cost-effective option. Backed by a 2-year warranty.
  • 409 grade stainless steel - higher corrosion resistance for longer service life in Australian conditions. Backed by a 10-year warranty.

Choose Your Configuration

Cat-equipped:

  • Cat & Muffler
  • Cat & Hotdog
  • Cat & Pipe Only

No cat:

  • No Cat & Muffler
  • No Cat & Hotdog
  • No Cat & Pipe Only

For the DPF-retaining variant, see the DPF-Back Exhaust options.

Fitment

  • Vehicle: Isuzu D-Max
  • Engine: 3L turbo diesel, Isuzu 4JJ3-TCX 4-cylinder
  • Year: MY21 onwards
  • DPF status: DPF-delete - this turbo-back system removes the factory DPF

Warranty

  • 409 grade stainless steel: 10-year manufacturer warranty
  • Aluminised steel: 2-year manufacturer warranty

These options are sold for off-road and racing use only. Please consider before making your purchase. Note: an ECU recalibration is required when deleting your DPF.

SKU dmax3dpfdelmy21
Brand IGNITE Exhausts
Shipping Weight 24.0000kg
Shipping Width 0.250m
Shipping Height 0.390m
Shipping Length 1.300m
Shipping Cubic 0.126750000m3

Be The First To Review This Product!

Help other Ignite Exhausts users shop smarter by writing reviews for products you have purchased.

Write a product review

  1. Remove rear tail pipe and muffler assembly from the vehicle.
  2. Remove centre connecting and DPF pipe from the vehicle.
  3. Using the factory DPF flange nuts fit the DPF flex pipe and tighten finger tight.
  4. Fit the connecting pipe to the DPF pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  5. Fit the pipe only/resonator or muffler section to the connecting pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  6. Fit the tailpipe to the pipe only/resonator or muffler section and tighten finger tight with the supplied 3/8 UNC nuts.
  7. Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call 1300 12 13 12 as soon as possible to avoid damaging the exhaust system.
  8. Enjoy your IGNITE exhaust!
