Ignite 3" Turbo-Back Sports Exhaust System - Holden RC Colorado 3L (2007-2012)

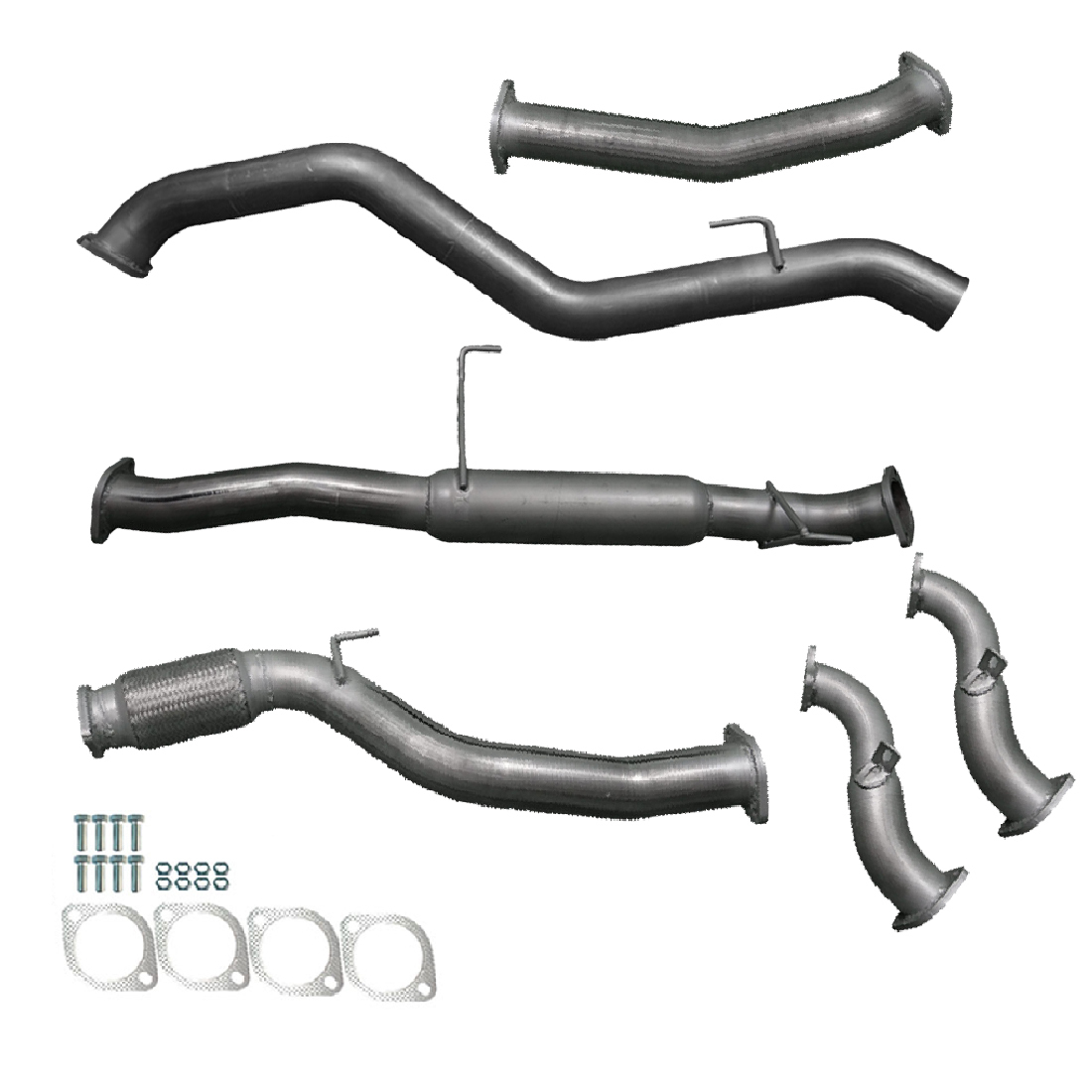

Designed, engineered and manufactured at the Ignite facility in Sunbury, Victoria. The 3" turbo-back system for the Holden RC Colorado 3L turbo diesel.

How It's Made

  • Pipework: CNC mandrel-bent 3" (76mm) tubing for consistent internal diameter through every bend
  • Flanges: Thick laser-cut plates for sealing surface flatness and long-term durability
  • EGT provision: Pyrometer fittings pre-fitted
  • Origin: Made in Australia

Specifications

  • System type: Turbo-back
  • Pipe diameter: 3" (76mm)
  • Pipe construction: CNC mandrel-bent
  • Flange plates: Thick laser-cut
  • EGT provision: Yes
  • Country of manufacture: Australia (Sunbury, VIC)

Material Options

  • Aluminised steel
  • 409 grade stainless steel - higher corrosion resistance for longer service life in Australian conditions.

Choose Your Configuration

Cat-equipped (road-legal):

  • Cat / Hotdog
  • Cat / Muffler
  • Cat / Pipe

No cat (off-road only):

  • No Cat / Hotdog
  • No Cat / Muffler
  • No Cat / Pipe

Fitment

  • Vehicle: Holden RC Colorado
  • Engine: 3L turbo diesel
  • Years: 2007-2012
SKU rcol30712
Brand IGNITE Exhausts
Shipping Weight 20.0000kg
Shipping Width 0.250m
Shipping Height 0.390m
Shipping Length 1.300m
Shipping Cubic 0.126750000m3

Be The First To Review This Product!

Help other Ignite Exhausts users shop smarter by writing reviews for products you have purchased.

Write a product review

  1. Remove rear tail pipe and muffler assembly from the vehicle.
  2. Remove centre connecting pipe from the vehicle.
  3. Remove flex join pipe from the vehicle.
  4. Remove turbo dump pipe heat shield.
  5. Remove gear box bracket.
  6. Remove turbo dump pipe. We advise to spray the 4 nuts with WD40 before removing.
  7. Insert the supplied EGT plug into the turbo dump pipe.
  8. Fit the turbo dump pipe section to the turbo outlet flange using the four supplied M8x1.25 nuts. Re fit gear box bracket at the same time and then tighten all 4 nuts.
  9. Fit the cat/cat delete section to the turbo dump pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  10. Fit the flex join pipe to the cat/cat delete section and tighten finger tight with the supplied 3/8 UNC nuts.
  11. Fit the small LWB connecting pipe to the flex pipe only if needed and tighten finger tight with the supplied 3/8 UNC nuts.
  12. Fit the pipe only/resonator or muffler section to the connecting pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  13. Fit the tailpipe to the pipe only/resonator or muffler section and tighten finger tight with the supplied 3/8 UNC nuts.
  14. Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call 1300 142 000 as soon as possible to avoid damaging the exhaust system.
  15. Enjoy your IGNITE exhaust!
